Casting USB Probes

» Videoscopes » Casting USB Probes

Casting USB Probes

CATEGORY AND TAGS:
Videoscopes, USB probes
  • USB probes connect with any Windows PC.
  • Tips bending is customzed as per the shape of the parts to inspect.
  • Diameters 1mm,1.8mm, 2mm,2.8mm,4mm,5.8mm,8mm.
  • Probe type: Rigid, Flexible(tungsten braided sheath),spring flexible.
  • 1.2mm probe 2 way direction.(exclusively offer), 2 mm 4 way direction(720*720)
enquiry
  • Specifications
  • Features
  • Industries
  • Sample Images

Casting USB Probes

Probe Data
Diameters 1.2mm/2.0mm/2.2mm/2.4mm/2.8mm/3.9mm/6mm/8mm（Customized diameters）
Camera 720*720,400*400, Mega pix
Length 1-10m or others
Articulations Yes
DoF 3-30mm,5-120mm,10-200mm,50mm-infinity
FoA 90°-140°
Probe types Rigid, Spring flexible, flexible (tungsten braided sheath
Cam Angles 0°,30°,70°,90° or other customized
Light Back mounted LED
Waterproof IP67
Host Data
Monitor LCD (optional) 10 inch
Power DC Adaptor
Output Port HDMI, USB
OS Windows

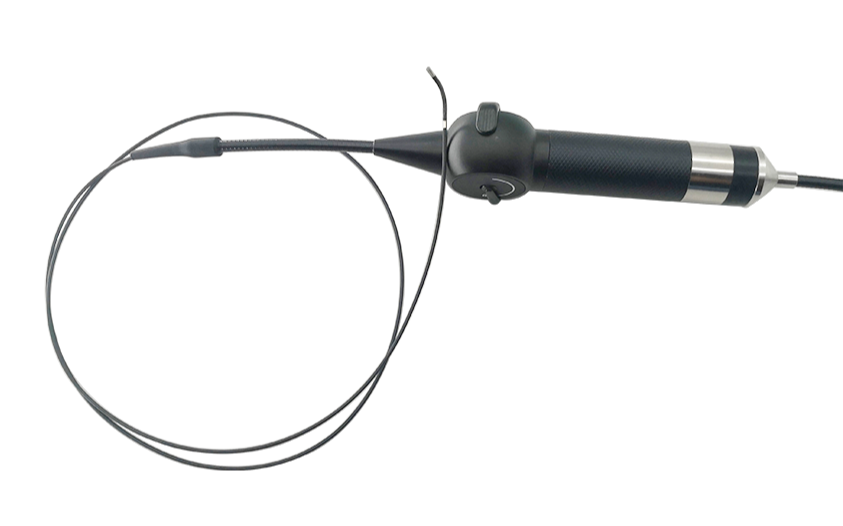

flexible all ways directions(tungsten braided sheath)

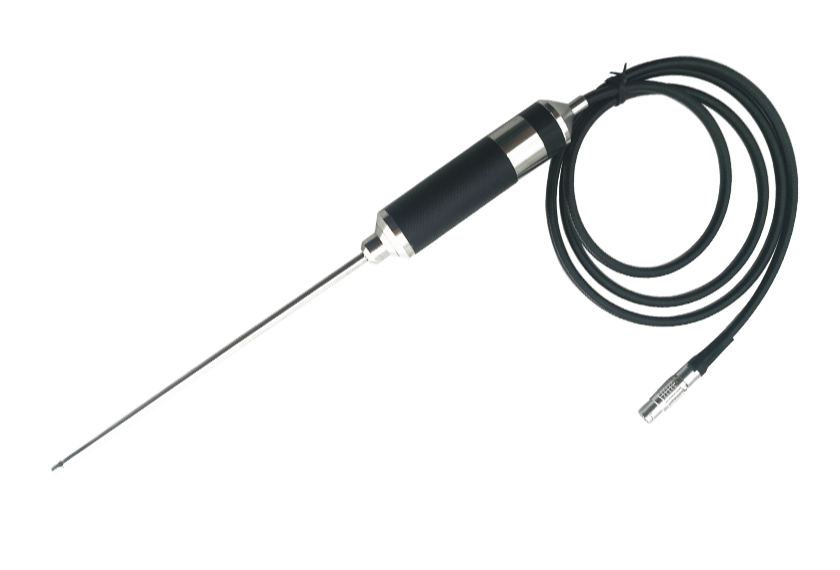

Rigid probes from diameters 1-8mm

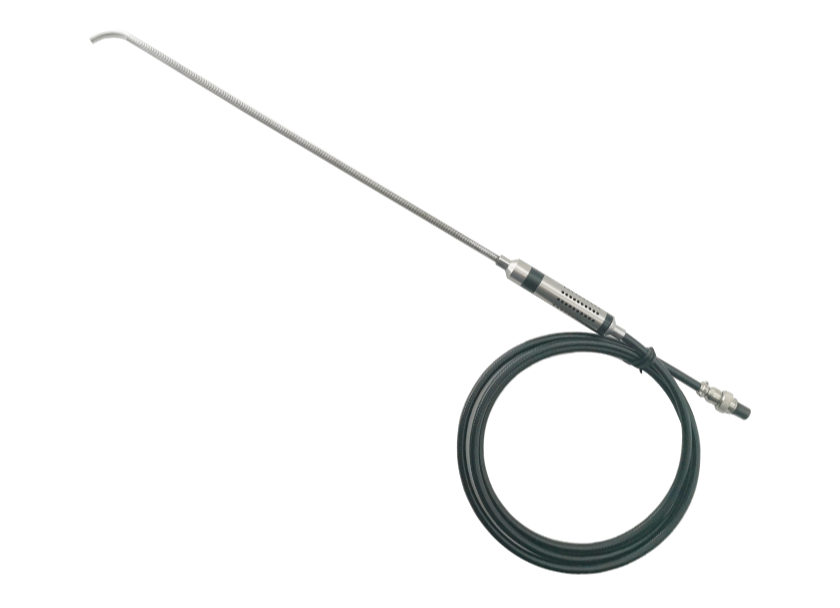

Spring flexible probes(Customized bendingof the tips)



Aviation & Aerospace

Chemical processing

Precision manufacturing

Oil & gas

After-sale service

Power grid
